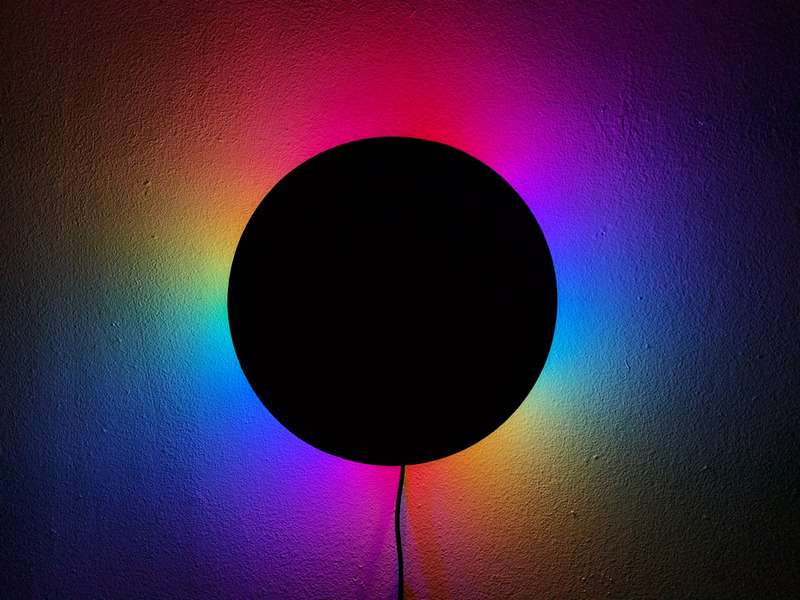

Small (5.25” / 133.35mm) clock and art display built with 60 RGB LEDs, controlled with an ESP8266 using the FastLED library.

Fully open-source, and programmable over Wi-Fi or micro USB cable.

Controlled via a web app over Wi-Fi, and/or a wireless infrared remote control.

Parts list:

• 4 3D printed quarters (10mm or 12mm to match your LED strip)
• ESP8266 Level Shifter Shield
• Wood Circle or Round Mirror
• 1m, 144 RGB LED Strip
• ESP8266
• SN74HCT245N Level Shifter
• 1000µF Capacitor
• 0.10µF Capacitor
• 330 Ohm resistors

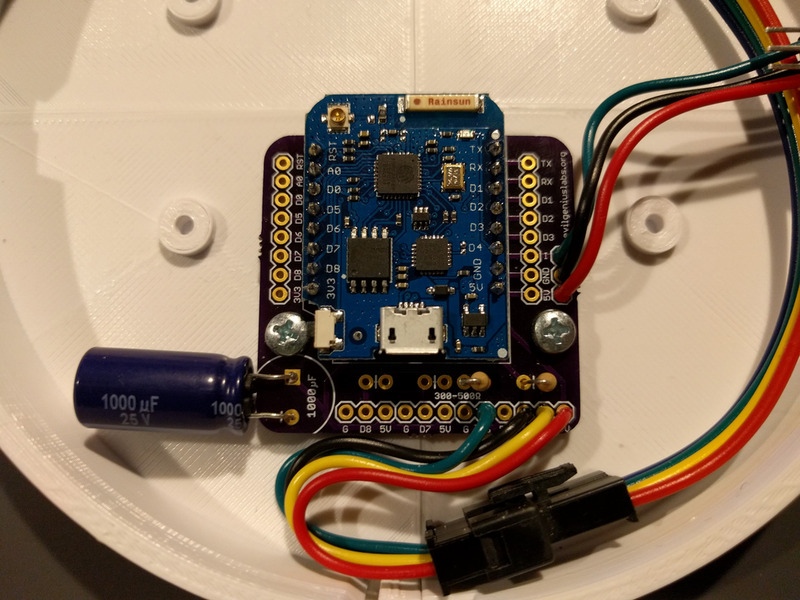

Controller assembly instructions
